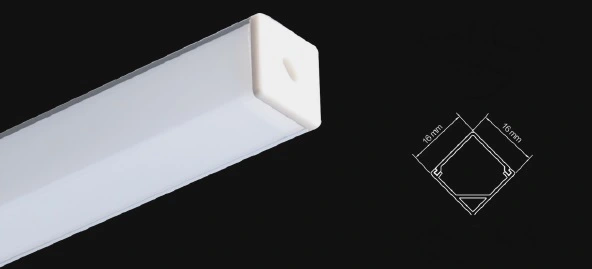

Dt1616 Rectangle LED Cabinet Light

Product Description

DC12V/24V 14.4W Linear Light bar LED Cabinet Light
1.Dimension:L 1000mm* W 16mm* H 12mm;Length depends on the exact requirement.
2. Watt:12W(Working Current:50mA)
3.Theorical Max Watt:14.4W/M when the working current is the max 60mA.For heat-dissipation and lifespan consideration, current below 55mA is sincerely suggested.
4. This light also can be designed as constant current strip, and the working current will be constantly the designed value and so the lumen will always be the same.
5. Input Voltage:12V
6. LED light Source:Epistar SMD5050 / SMD2835
7. Colour Temperature:White(2700K-6500K);Red, Green, Blue,Purple,Orange and etc
8. Colour Rendering Index(CRI):>80
9. Power Efficiency:≥90lm/W
10.Product Width Range:15mm;other width should be discussed.
11. IP Grade:IP44,indoor use only.
12. Working Temperature:-20°C - 50ºC

Dt1616 Rectangle LED Cabinet Light

Conventional LED strip light Bar Product:

Length(mm)LEDLED quantityWatt(W)Lumen(lm)
1150SMD 283591.4421-23
2150SMD 505092.1638-43
3340SMD 3528423.3626-28
4340SMD 2835243.8457-62
5340SMD 5050184.3277-86
6550SMD 3528604.838-40
7550SMD 2835365.7686-92
8550SMD 5050307.2128-136
980SMD 3528907.257-60
1080SMD 28356310.08152-160
1180SMD 50504510.8180-200
121000SMD 35281209.676-80
131000SMD 28358413.44200-215
141000SMD 50506014.4258-270
151500SMD 352818014.4115-120
161500SMD 283512019.2288-308
171500SMD 50509623.04414-436
182000SMD 352824019.2152-158
192000SMD 283514423.04345-368
203000SMD 352827021.6172-180
213000SMD 283518028.8432-460

1. Customized length, LED quantity, Watt and Lumen are negotiable.
2. The light should be used together with suitable external power supply driver.
Quality Control:
1. All the LED Light Source have been tested before entering the warehouse
2. The strips shpould have at least 48 hours aging test after finish producing.
3. Product Warranty: 3000 hours or 2 years

Main Application(only indoor application)
1. Jewelry, watch, ornament and cosmetics store cabinet decoration and lighting
2. Clothes and shoes store lighting application
3. Furniture lighting
4. Daily common home lighting
5. Display and Advertisement lighting application
6. Public lighting.
7. Other suitable lighting requirement.
Trade Term:
1. Payment Term: 30% pre-payment and the balance T/T , Paypal beofre the delivery or L/C at sight
2. Delivery Time: 15-30 days.
3. Sample: Avaliable
4. Sample Delivery Time: in 7 days
5. Sample Fee:Yes

Contact us if you need more details on LED Kitchen Cabinet Light. We are ready to answer your questions on packaging, logistics, certification or any other aspects about LED Light Strip、LED Strip Light Bar. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Aluminum Profile LED Light Bar
